Dual Purposes Pipe Shoes for Hot Temperature Applications

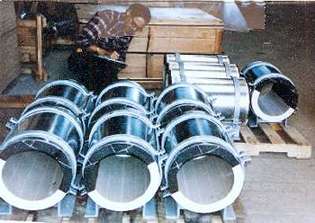

The pictures above show insulated pipe supports designed for two very different temperature applications. The top picture shows an inspector checking “hot” shoes for high temperature piping. They have one 180 degree section of the insulation made of foam glass and the other 180 degree made from calcium silicate. Some components are chosen for their insulating properties only, other must both insulate and support the load of the pipe. The bottom picture shows a 54 inch “cold” shoe of galvanized steel with TFE slide plates on the bottom. Inside the galvanized steel is bonded a layer of polyurethane foam which has been coated with a white vapor barrier. This polyurethane layer provides both insulation and support of the load at cryogenic temperatures.
