Sweco Fab, Inc. Custom Designs and Fabricates a 60” diameter Flue Gas Duct for an oil refinery in Michigan  (PT&P Ref #70601-F1, RF) 11/21/2003

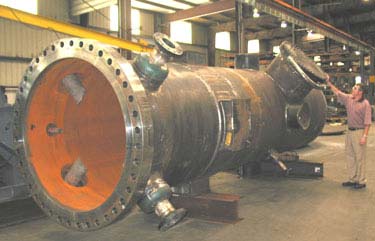

Sweco Fab, Inc. designed and manufactured a Flue Gas Duct, weighing over 66,000 lbs. and 18'-5” in length, for an oil refinery in Detroit, Michigan. The duct is designed to transport hot gases from the regenerator to the flue gas cooler. The walls are ½” thick with a high-density vibracast refractory lining. The rest of the unit was fabricated out of carbon steel SA-516-70 and is designed for a maximum pressure of 51 PSIG and maximum temperature of 1450°F.

Leak examinations where performed on the unit after fabrication, which included a10 percent x-ray test, a100 percent dye-pen test and a hydrotest at 77 PSIG.
