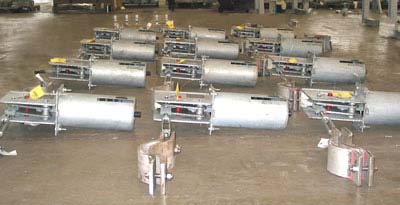

Piping Technology and Products, Inc recently fabricated 22 Carbon Steel PTP 200-C type Horizontal & PTP 100-C type Vertical Constants with sizes from 3 to 27.  The load capacity of the constants spans between 215 to 2650 lbs., with a travel ranging from 1” to 4”.  The three bolt clamps are fabricated from stainless steel material A 240 Gr. 304 for 4" to 8" dia. pipes.  The rod and turnbuckle were shortened on two of the constants in order to accommodate situations of small rod take out. Standard load and adjustment testing was performed.
