Piping Technology & Products, Inc. Designed and Fabricated Coldshoes with a Load Capacity of 75,000 lbs  (PT&P Ref# 71181-G1,DS) 09/19/03

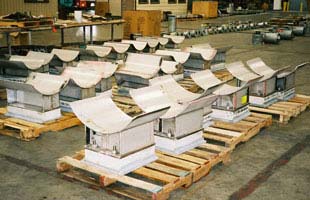

PT&P recently designed and manufactured over 1000 Coldshoes for an LNG Plant in Egypt.  These shoes are designed to support loads up to 75,000 lbs. at an operating temperature of -350°F. They are customized to fit pipe sizes of 20”, 24”, 30”, and 36”. All Coldshoes are composed of stainless steel with a Micarta® insulator.  Micarta® is a woven glass fabric laminated with epoxy resin. It is extremely high in mechanical strength, has low moisture absorption and dissipative factors, and has superior electrical characteristics which are exhibited over a wide range of temperatures and humidities.

A prototype was constructed to perform various tests and to finalize the design prior to fabrication.
