PT&P, Inc. Designs and Fabricates 13,900 lb. Load Pipe Shoes and Bronzphite® Slide Plate for an Oil Refinery in Texas (PT&P Ref# 73993-F3,EE) 04/02/04

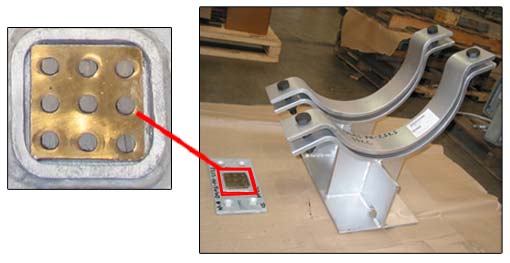

Close-up image of Bronzphite® plate	Pipe shoe with Bronzphite® slide plate

Piping Technology and Products, Inc. recently designed and fabricated more than 75 pipe shoe and Bronzphite® slide plate assemblies for an oil refinery in Texas. Each assembly consists of two pipe clamps, a base plate and a maintenance free Bronzphite® slide plate. The pipe shoes with sizes ranging from 18” to 24” are fabricated from A387 alloy steel. They are designed for 965°F and 2” of horizontal movement.

The 3” x 3” Bronzphite® (graphite impregnated bronze) slide plates are self-lubricating bearing plates made of a high quality bronze with graphite filled grooves. They are designed for heavy loads, low velocity applications, and for situations where the use of oil or grease is undesirable or unfeasible.

For additional information on similar products, please refer to the product section.
