Piping Technology & Products Inc. Designed, Fabricated and Machined Anchor Bolts for Boiler Feed Water Pump Turbine Drives in Colorado (PT&P Ref #88853-J1, RG) 9/06/2006

Anchor Bolts Inspection

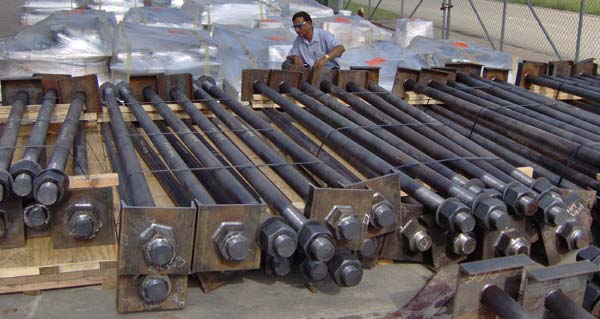

These are special high-strength anchor bolts used in a coal-fired power plant to secure the water pumps’ foundation. They range from 1” to 3½” in diameter and 137” in length. The actual bolts are made from ASTM low Alloy Steel F1554-04, grade 55. This steel has a tensile strength of 517-655 Mpa, (75-95 Ksi), and a yield strength of 380 Mpa, (55 Ksi). The nuts are made from ASTM A563, grade A, and the washers from ASTM F436, Type 1. The bolts are threaded per UNC threading, class 2A fit, and the finish is plain.

For additional information on similar products, please refer to the product section.
