Piping Technology and Product, Inc. Designed and Fabricated Sway Braces with Ball Joints for a Coker Plant in Texas (PT&P Ref # 88016-C1, RF) 09/13/2006
|
| |

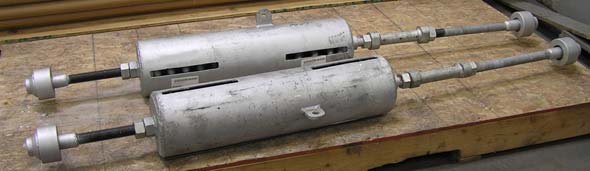

These special sway braces that are subject to the banana effect were designed to specific requirements for a Coker Plant in Texas. With deflection capability of up to plus or minus 9" in all directions, these sway braces are used to stabilize tall stacks. Five springs in tandem prevent binding during operation, and are necessary due to extreme length. The sway braces ranged from 70" to 144" in length and can handle up to 8,000 lbs. The precision machined pivoting ball joints positioned at each end allow for freedom of movement in any unpredictable direction. |
 |
