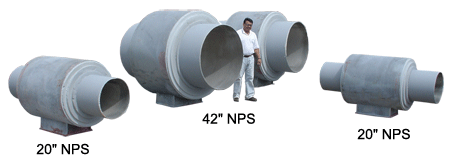

Piping Technology & Products, Inc. Designed and Fabricated Injection-Molded Anchors for an LNG Plant in New Brunswick, Canada (PT&P Ref# 91611-G1, CC/DB) 6/27/2007

20" NPS
Axial Load: 62,500 lb.
Vertical Load: 14,773 lb.
Lateral Load: 11,364 lb.
Foam Density: 32 lb. PCF
42" NPS
Axial Load: 136,000 lb.
Vertical Load: 40,000 lb.
Lateral Load: 15,909 lb.
Foam Density: 32 lb. PCF
6" NPS
Axial Load: 9,773 lb.
Vertical Load: 5,682 lb.
Lateral Load: 2,273 lb.
Foam Density: 20 lb. PCF
These supports are used in a re-gasification terminal and are designed for -29°C ambient and -196°C fluid temperatures. The polyurethane foam insulation is injected into a mold with a pipe spool in place to ensure maximum fit. The pipe anchors are made from 516 Grade 70-N carbon steel. These supports were put through Finite Element Analysis and inspected by our Quality Control Department.

Further information about the different types of cold shoes can be found in our Product Section.
