Piping Technology & Products, Inc. Designed and Fabricated Polyurethane Saddle Supports for FRP Pipe (PT&P Ref# 91240 -G1,GS) 4/2/2008
|
 |
 |

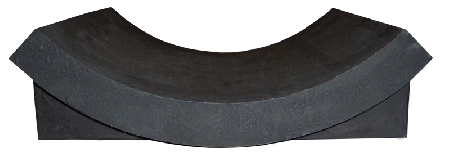

Piping Technology & Products, Inc. designed and fabricated these saddle supports to support FRP pipe or similar plastics in sizes from 2" to 36" in diameter. The saddle support is fabricated from a molded density 20 polyurethane block with a load bearing capacity of 150 PSI that allows for high loads for a 36" diameter line. |
| The base is bonded to a 20 gauge steel pan that provides a steel to steel resting surface. The foam is extended on each side of the base to allow field strapping of the support to the pipe. These saddle supports are often used in a circulating water service. These particular supports are to be used in a power generating station in the U.S. |
Further information about the different types of cold shoes can be found in our Product Section.
|
| |
|
|
|
|
|
|
