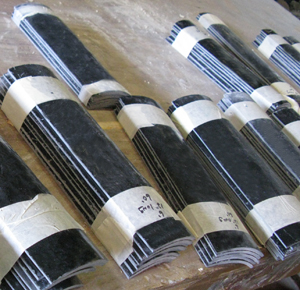

FRP Wear Pads

Also known as non-metallic wear pads, these products are used as corrosion protection for uninsulated piping systems and extend the life of the pipe. They also eliminate metal to metal contact and electrically isolate the piping from the pipe rack and other metal structural elements.

TYPES & SIZES

INSTALLATION & MAINTENANCE

ADDITIONAL INFORMATION

  • FRP Wear Pads minimize maintenance and operational costs
  • Does not require welding, skilled personnel, or hot work permits
  • All Wear Pads come with pre-roughened inside for high epoxy bonding adhesion
  • We can provide alternative non-metallic wear pads such as neoprene to prevent metal to metal contact

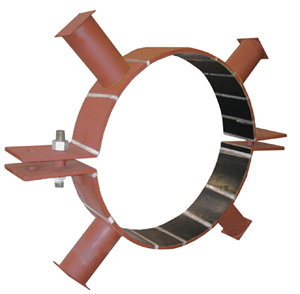

  • PT&P also designs and fabricates pipe supports that will be installed on FRP piping systems
  • Have a problem with your current FRP Wear Pads? Contact PT&P’s Field Services for your installation and inspection needs

REQUEST A QUOTE



REQUEST FIELD SERVICES

Ammonia Plant
Clean Fuels
Cogeneration Plant
Commercial

Electric Plant
Energy Facility
LLDPE Chemical Plant
TBE Plant

Natural Gas Combined Cycle Facility
Natural Gas Processing & Separation
Oil Refinery
Oil Sand Mine

Paper Manufacturer
Petroleum Refinery
Power Generating Facility
See All

See More Images

At Piping Technology, we fabricate both FRP wear pads to be used on metallic and non-metallic pipe. We also design ...Continue Reading

FRP stands for fiberglass reinforced plastic. It Is a material that is made up of a polymer matrix reinforced with ...Continue Reading

We recommend that you use a non-metallic wear pad or FRP pad that is fabricated from fiberglass reinforced plastic and ...Continue Reading

FRP wear pads are used as corrosion protection on uninsulated pipes and can be secured to FRP pipes to provide ...Continue Reading

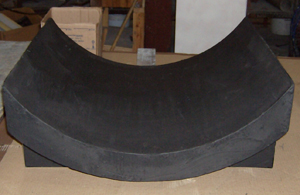

We providea variety of insulation materials including Micarta, G10, Permali, CalciumSilicate, Firetemp, FRP and Polyurethane. These materials are used for ...Continue Reading

The area where the pad is to be affixed on the pipe and the inside surface of the wear pad ...Continue Reading


More FAQs…

General Dimensions & Specifications

Download Fig. 182
PDF

Fig. 182-Non-Metallic Pipe Wear Pad

Fig182
MATERIAL: Vinyl resins
FINISH: As is
SIZE RANGE: 1/2″ thru 48″

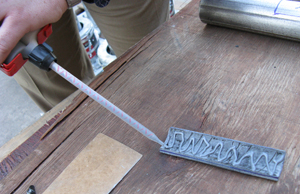

SERVICE: Recommended to protect un-insulated pipe from the metal supporting structure. Pad to be secured to pipe using epoxy adhesive.
MAX TEMP.: 400°F
ORDERING: Specify figure number, pipe size, description, length and angle.

PIPE SIZETHICKNESSLENGTH LANGLE ARADIUS R
1/21/412907/16
3/41/412909/16
11/412905/8
1  1/41/412907/8
1  1/21/412901
21/412901  3/16
2  1/21/412901  7/16
31/412901  13/16
3  1/21/412901  3/4
41/412902  1/4
51/412902  13/16
61/412603  5/16
81/412604  5/16
101/412605  3/8
121/412306  3/8
141/412307
161/412308
181/412309
201/4123010
243/8123012
26-483/812301/2 of Pipe O.D.
