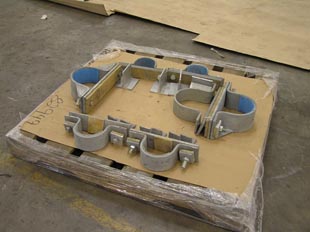

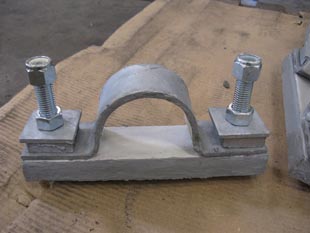

Hold-Down Pipe Clamps

Hold-down pipe clamps are used in applications where you would like to either 1.) anchor the pipe in position or 2.) permit axial movement of the pipe. Slide plates, such as PTFE, 25% glass filled or graphite, can be incorporated into the design to reduce the friction between the pipe and clamp.

Ammonia Plant
Chemical Plant
Clean Fuels
Commercial

Electric Plant
Energy Facility
Ethylene Plant
LLDPE Chemical Plant

LNG Plant
MTBE Plant
Natural Gas Combined Cycle Facility
Natural Gas Processing & Separation

Oil Refinery
Oil Sand Mine
Paper Manufacturer
See All

See All Images

Hold-down pipe clamps are used in applications where you would like toeither 1.) anchor the pipe in position or 2.) ...Continue Reading

There are numerous ways to mount a pipe to the floor including using u-bolts, hold-down pipe clamps, or pipe shoes. ...Continue Reading

One method of clamping pipes to a wall would be to use the PTP HD-1 hold-down pipe support.   Anchor ...Continue Reading

The best way to anchor a pipe to exterior brick would be by utilizing a HD-1 anchor hold down clamp ...Continue Reading


More FAQs…

GENERAL DIMENSIONS & SPECIFICATIONS

Download PDF

Fig. HD-1: Anchor Type Hold-Down

Fig. HD-1: Anchor Type Hold-Down for Pipe Line

For Pipe Sizes 2-6 inclusive For Pipe sizes 8-36 inclusive

MATERIAL: Carbon steel
FINISH: Black or galvanized
TEMP: 750°F
APPLICATIONS: Fig. PTP HD-1 is an anchor type hold down. This hold down is generally used on pipe lines where little or no insulation is required.
ORDERING: Specify figure number, pipe size and description.

PIPE

SIZE

A

B

C

D

E

R

T

2

9 3/8

3 3/16

2 3/8

3 1/2

15/16

1 3/16

1/4

3

10 1/2

3 3/4

3 1/2

3 1/2

1 1/2

1 3/4

3/8

4

11 1/2

4 1/4

4 1/2

3 1/2

2

2 1/4

3/8

6

13 5/8

5 5/16

6 5/8

3 1/2

3 1/16

3 5/16

3/8

8

16

6 1/2

8 5/8

3 11/16

4 1/16

4 5/16

3/8

10

19

8

10 3/4

4 1/8

5 1/8

5 3/8

3/8

12

21

9

12 3/4

4 1/8

6 1/8

6 3/8

1/2

14

23

10

14

4 1/2

6 3/4

7

1/2

16

25

11

16

4 1/2

7 3/4

8

1/2

18

27

12

18

4 1/2

8 3/4

9

1/2

20

29

13

20

4 1/2

9 3/4

10

1/2

24

33

15

24

4 1/2

11 3/4

12

1/2

30

39

18

30

4 1/2

14 3/4

15

1/2

36

45

21

36

4 1/2

17 3/4

18

1/2





Hd1a

Download PDF

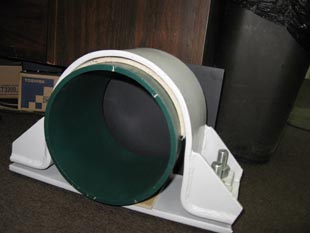

Fig. HD-2: Hold-Down for Lateral Restraint

Fig. HD-2: Hold-Down for Lateral Restraint

MATERIAL: Carbon steel
FINISH: Black or galvanized
TEMP: 400°F
APPLICATIONS: Fig. PTP HD-2 is a restraint type hold down. The clamp radius as well as the base is lined with PT&P’s PTFE, 25% glass filled, slide plate, allowing axial movement while restraining lateral movement. It is generally used on compressor lines where temperature is high and thermal movement is great.
ORDERING: Specify figure number, pipe size and description.

PIPE

SIZE

A

B

C

D

E

F

G

R

T

2

9 5/8

3 9/16

2 1/2

3 9/16

3/4

2 1/2

1 1/4

1 1/4

1/4

3

10 3/4

4 1/8

3 5/8

3 9/16

1 5/16

2 1/2

1 1/4

1 13/16

1/4

4

11 3/4

4 5/8

4 5/8

3 9/16

1 13/16

2 1/2

1 1/4

2 5/16

1/4

6

14 1/2

6

6 3/4

3 7/8

2 7/8

4

1 1/4

3 3/8

3/8

8

16 1/2

6 5/8

8 3/4

3 7/8

3 7/8

4

1 1/4

4 3/8

3/8

10

18 5/8

8 1/16

10 7/8

3 7/8

4 15/16

4

1 1/4

5 7/16

3/8

12

21 3/4

9 5/8

12 7/8

4 7/16

5 15/16

4

1 1/4

6 7/16

1/2

14

23

10 1/4

14 1/8

4 7/16

6 9/16

6

1 3/8

7 1/16

1/2

16

25

11 1/4

16 1/8

4 7/16

7 9/16

6

1 3/8

8 1/16

1/2

18

27

12 1/4

18 1/8

4 7/16

8 9/16

6

1 3/8

9 1/16

1/2

20

29

13 1/4

20 1/8

4 7/16

9 9/16

6

1 3/8

10 1/16

1/2

24

33

15 1/4

24 1/8

4 7/16

11 9/16

6

1 3/8

12 1/16

1/2

30

39

18 1/4

30 1/8

4 7/16

14 9/16

6

1 3/8

15 1/16

1/2

36

45

21 1/4

36 1/8

4 7/16

17 9/16

6

1 3/8

18 1/16

1/2







Hd2

Download PDF

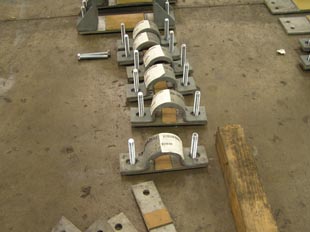

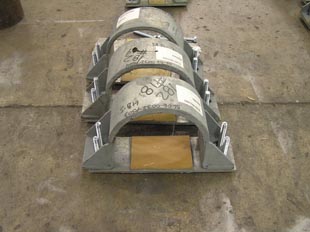

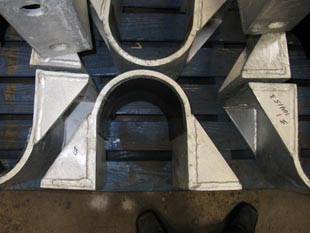

Fig. HD-3: Arrestor Type Hold-Down

Fig. HD-3: Arrestor Type Hold-Down

MATERIAL: Carbon steel
FINISH: Galvanized
TEMP: 200°F
APPLICATIONS: Fig. PTP HD-3 is an arrestor type hold down. This hold down is actually a restraint that is used when there is very low thermal movement. Its radius is lined with a belting material that is well designed to absorb shock from vibration. This type is generally used on compressor lines or similar application.
ORDERING: Specify figure number, pipe size and description.
NOTE: Belting material remains impervious to heat up to 200°F.

PIPE

SIZE

A

B

C

D

E

R

T

2

9 7/8

3 7/16

2 7/8

3 1/2

1 3/16

1 7/16

1/4

3

11

4

4

3 1/2

1 3/4

2

3/8

4

12

4 1/2

5

3 1/2

2 1/4

2 1/2

3/8

6

14 1/8

5 9/16

7 1/8

3 1/2

3 5/16

3 9/16

3/8

8

16 1/2

6 3/4

9 1/8

3 11/16

4 5/16

4 9/16

3/8

10

19 1/2

8 1/4

11 1/4

4 1/8

5 3/8

5 5/8

3/8

12

21 1/2

9 1/4

13 1/4

4 1/8

6 3/8

6 5/8

1/2

14

23 1/2

10 1/4

14 1/2

4 1/2

7

7 1/4

1/2

16

25 1/2

11 1/4

16 1/2

4 1/2

8

8 1/4

1/2

18

27 1/2

12 1/4

18 1/2

4 1/2

9

9 1/4

1/2

20

29 1/2

13 1/4

20 1/2

4 1/2

10

10 1/4

1/2

24

33 1/2

15 1/4

24 1/2

4 1/2

12

12 1/4

1/2

30

39 1/2

18 1/4

30 1/2

4 1/2

15

15 1/4

1/2

36

45 1/2

21 1/4

36 1/2

4 1/2

18

18 1/4

1/2







Hd3

PT&P’s entire range of Hold-Down Pipe Clamps can be integrated with TPI clips and rods, as well as vibration pads.
