Bronzphite® Slide Plates

Bronzphite® is best suited for high loads, low-velocity applications and in places where the use of oil or grease is undesirable or unfeasible. Bronze plates impregnated with graphite will also handle temperatures up to positive 1100 degrees Fahrenheit. Additionally, Bronzphite® plates are suited for high-pressure systems with a load of up to 5000 PSI.

Types & Sizes

Technical Information

Installation & Maintenance

Welding: Generally for Bronzphite® slide plate, tack weld with the electric arc along the outside edge for a solid installation. Wherever full weld is desired, a one-quarter inch weld is used along the sides of the base plate to the substrate. The full weld would prevent seepage of water between the Bronzphite® bearing and the support structure.
The upper element is polished stainless steel. Both the upper and lower element can be tack weld with the electric arc along the outside edge for a solid installation to the bottom of the shoe, vessel, structural steel or trunnion.

Installation in Concrete: When installing Bronzphite® slide plate assemblies in concrete, anchor bolts will be integrated into the base plates for attachment to either the concrete form rebar structure or simply within the concrete itself.

Request a Quote



Acid Plants
Bioenergy Plant
Chemical Plant
Clean Fuels

Cogeneration Plant
Cold / Cryogenc Service
Commercial
Electric Plant

Energy Facility
Ethylene Plant
LLDPE Chemical Plant
LNG Plant

MTBE Plant
Natural Gas Combined Cycle Facility
Natural Gas Processing & Separation
See All

See All Images

The purpose of slide plates is to produce a low-coefficient of friction between a stationary support element and the moving ...Continue Reading


More FAQs…

General Dimensions & Specifications

Download Bronzphite® General PDF

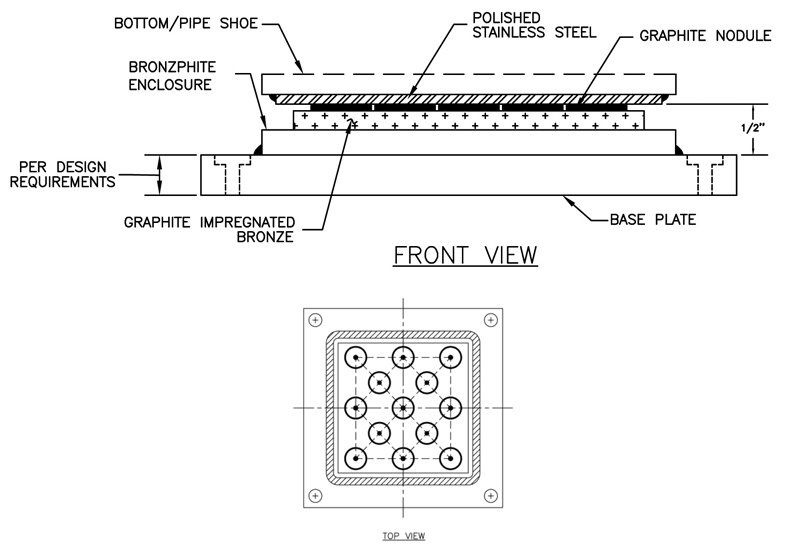

Bronzphite® Slide Plates General Diagram

Bronzphite Slide Plate

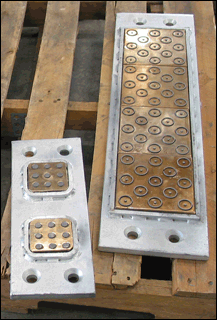

The Bronzphite® plate is available in a standard configuration, which consists of the bronze plate bolted to a steel backing plate, allowing it to be welded in the field. The plate is self-lubricating and durable and is recommended for a variety of industrial applications, including pipelines, storage tanks, and dust collectors.

ASSEMBLY:

Standard Assembly:
Graphite impregnated bronze plate combined with a carbon steel backing plate, to be field welded. Loads up to 5000 psi, temperature: up to 1,100°F.

ADVANTAGES:

• Maintenance free
• Self-lubricating
• High wear resistance
• Has an extended life
• Lubrication does not deteriorate with wear
• Prevents accumulation of dust and debris
• Higher durability than standard graphite
• Withstands extreme pressures and high temperatures

APPLICATIONS:
Bridges: Highway bridges, overpasses, railroad bridges.
Architectural in Wood, Concrete or Steel: Cross beam and girder slip joints, roof slabs and corbels, vibration pads, airport hangar doors, domes.
Industrial: Heat exchangers, dust collectors, heavy machinery, refinery equipment, wind tunnels, penstocks, vessels, pipelines, air preheaters, atomic energy applications, transmission towers, storage tanks, offshore drilling rigs.

ORDERING:
1. Please specify the dimensions of the upper plate and dimensions of the lower plate. It is common practice that the upper plate is generally larger than the lower plate.
2. Specify base plate thickness.
